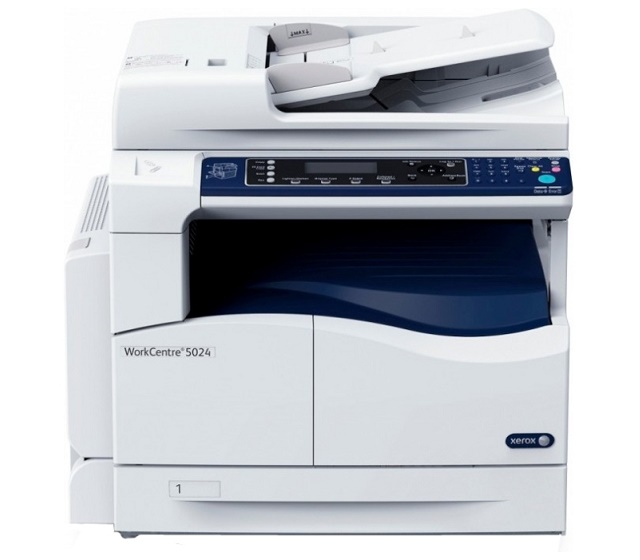

Xerox WorkCentre 5024

Рейтинг

Снят с производства

Тип устройства

МФУ

Технология печати

лазерная

Макс. формат

Число страниц в месяц

25000

Скорость печати A4

Цветность печати

черно-белая

Общие характеристики
Цветность печати
Область применения	малый офис
Макс. формат	A3
Число страниц в месяц	25 000
Сканер
Копир
Тип устройства	МФУ
Телефон
Размещение	настольный
Факс
Печать фотографий
Технология печати	лазерная
Тип	лазерный/светодиодный
Принтер
Двусторонняя печать
Печать без полей
Пигментные чернила
Прямая печать
Макс, разрешение для ч/б печати
По Y	600
По X	600
Скорость ч/б печати
A4	24
Время выхода первого отпечатка
Ч/б	14
Копир
Шаг масштабирования	0,01
Время выхода первой копии	7,2
Значение масштаба
Максимальное	4
Минимальное	0,25
Макс, разрешение (ч/б)
По X	600
По Y	600
Сканер
Тип сканера	планшетный/протяжный
Стандарт TWAIN
Макс. формат оригинала	A3
Отправка изображения по e-mail
Стандарт WIA
Макс, размер сканирования
По Y	420
По X	297
Расходные материалы
Количество картриджей	1
Ресурс ч/б картриджа/тонера	9 000
Печать на:
Рулоне
Фотобумаге
CD/DVD
Пленках
Глянцевой бумаге
Матовой бумаге
Конвертах
Этикетках
Карточках
Факс
Цветной
PC Fax
Телефон
АОН
Спикерфон
Caller ID
Проводная трубка
Автоответчик
Беспроводная трубка
Стандарт DECT
Языки управления
PCL 5e
PCL 5c
PostScript 3
PostScript 2
PPDS
PDF
PostScript
PCL 6
Лотки
Емкость лотка ручной подачи	100
Подача бумаги
Максимальная	1 850
Стандартная	350
Финишер
Сортер
Электронная сортировка
Степлер
Брошюровщик
Сортировка со сдвигом
Интерфейсы
Версия USB	2,0
LPT
Bluetooth
Wi-Fi 802.11n
Wi-Fi
RS-232
Устройство для чтения карт памяти
FireWire (IEEE 1394)
Веб-интерфейс
Инфракрасный порт
AirPrint
USB
Память/Процессор
Частота процессора	300
Объем памяти	256
Дополнительная информация
Экран
Работа от аккумулятора
Поддержка ОС
Windows
Mac OS
DOS
Linux
Габариты
Вес	37
Ширина	595
Глубина	573
Высота	581

Модули

PAPER FEED

Детали

Деталь:	Накладка площадки отделения бумаги из кассеты и лотка ручной подачи
Парткод:	019K09420
Цена:	4 000 ₽

Деталь:	Ролик подачи бумаги из кассеты
Парткод:	059K32773
Цена:	700 ₽

Коды ошибок

003-500

003-754

003-795

003-942

003-956

003-963

003-972

003-973

004-345

005-122

005-123

005-125, 005-145

005-131, 005-132

005-134, 005-139

005-135

005-136

005-147

005-196

005-197

005-198, 005-199

005-210

005-275, 005-280

005-305

005-500

005-907, 005-908, 005-913

005-940

005-948

007-270

007-272

007-273

010-311

010-312

010-320

010-327

010-379

010-392

010-602

016-346

016-372

016-500

016-501

016-502

016-504

016-570

016-571

024-910, 024-911, 024-915

024-912

024-913

024-946

024-947

024-948

024-949

024-950

024-951

024-952

024-953

024-954

024-958, 024-959, 024-960

024-961

024-962

024-965

024-966

033-313

033-316

041-210, 041-211

042-325, 042-614

042-400

042-608

045-310

045-313

047-218

061-321

061-325

062-277

062-300

062-311

062-360

062-371, 062-380

062-386

062-389

062-396

071-105

072-102

072-105

072-210

072-212

072-215

072-461

072-470

073-102

073-104

073-105

073-210

074-101

074-102

074-104

074-105

074-210

075-135

077-101

077-103

077-104

077-106

077-129

077-211

077-212

077-300

077-301

077-305

077-309

077-900, 077-901, 077-904

077-905

077-906

091-401, 091-402

091-406, 091-424

091-430

091-440

091-441

092-660, 092-668

092-661

092-910

093-312

093-400

093-406

093-912

093-956

093-959

116-317

116-321

116-323

116-324

116-334

116-377

116-386

116-747

117-327

123-314

124-311

127-396

133-226

134-210

134-211

Описание

Парткод

Название

XEROX Тонер-картридж черный

XEROX Блок фотобарабана / Копи-картридж

XEROX Вал переноса

Error code:	003-500
Description:	N-Up NG Out Of Range During 2-Up or 4-Up, the reduce/enlarge ration was not within the range of 25 to 400%.
Remedy:	Press [Stop] on the UI Panel and change the settings.

Error code:	003-754
Description:	IPS Overrun The IPS processing has overtook the Scan processing.
Remedy:	This might be avoided by setting the R/E ratio to 99% or 101%. If this occurs frequently, obtain the document from the User and contact the Support Department for assistance.

Error code:	003-795
Description:	AMS Limit Error RAP 003-795 AMS (auto reduce/enlarge) limit error.
Remedy:	1. Advise the customer to cancel the job then to change the job properties. 2. Obtain the log file using the log tool. Perform 2.6 Log RAP • If there was a reboot after the error had occurred and hence was unable to obtain the log, set NVM (700-530) to “0” to perform log collection and return the NVM (700- 530) to “1” after completing the procedure. 3. Change any possible mechanical settings for corrective actions or detection conditions and repeat the operation. 4. Check the version of Controller ROM. If it is not the latest, download and update to the latest software revision. (Refer to GP 9 Firmware Version Upgrade) 5. Switch the power off then on.Get the procedures for reproducing an error according to the operation that was performed when the error occurred. a. Check the exact occurrence timing during job execution. b. Check the job settings from the Panel. c. Collect other information as much as possible to reproduce the error. 6. Obtain logs immediately after the error has occurred without turning the power off and on. Perform 2.6 Log RAP. 7. The ESS Board rarely fails, contact Technical Support for further instructions.

Error code:	003-942
Description:	Not-Supported Doc Size During DADF Scan of a Copy, Scan and Fax sending Job, an unsupported document size was detected.
Remedy:	1. Press [Stop] on the UI Panel. 2. Check the setting of the document size group. 3. Check whether the document size is a supported size. 4. If the document size is a supported size, the DADF might have malfunctioned. Refer to following FIP to check the DADF. • 005-196 (Size Mismatch Jam on No Mix-size) • 005-948 (SS-Size Mismatch Jam on No Mix-size)

Error code:	003-956
Description:	Documents Size Unknown Error RAP 003-956 Undefined document size was detected when Platen is selected and only APS requires document size selection.
Remedy:	1. Advise the customer to verify the correct document size for the job, change if needed, then retry the job. 2. Obtain the log file using the log tool. Perform 2.6 Log RAP • If there was a reboot after the error had occurred and hence was unable to obtain the log, set NVM (700-530) to “0” to perform log collection and return the NVM (700- 530) to “1” after completing the procedure. 3. Change any possible mechanical settings for corrective actions or detection conditions and repeat the operation. 4. Check the version of Controller ROM. If it is not the latest, download and update to the latest software revision. (Refer to GP 9 Firmware Version Upgrade) 5. Switch the power off then on.Get the procedures for reproducing an error according to the operation that was performed when the error occurred. a. Check the exact occurrence timing during job execution. b. Check the job settings from the Panel. c. Collect other information as much as possible to reproduce the error. 6. Obtain logs immediately after the error has occurred without turning the power off and on. Perform 2.6 Log RAP. 7. The ESS Board rarely fails, contact Technical Support for further instructions.

Error code:	016-372
Display:	016-372 System Restart Printer Contact Support If Message Returns
Description:	DRAM Memory Allocation Fail Fax memory allocation error is detected.
Causes:	• IP Board, PL7.1.9 • MCU Board, PL7.2.2
Remedy:	1. Reseat all connectors on the IP Board and the MCU Board. Does the error persist? Go to step 2. Complete. 2. Replace the IP Board (Phaser 6020/6022 and WorkCentre 6025 MFP, WorkCentre 6027 MFP. Does the error persist when the power is turned on? 1. SaveNVM to ESS 2. Replace the MCU Board. 3. LoadNVM from ESS Complete.

Error code:	004-345
Description:	HVPS Communication Error Communication failure between the ESS/MCU PWB and the HVPS was detected.
Remedy:	1. Turn the power OFF and ON. 2. Turn OFF the power and check the connection between the HVPS J500 and the ESS/ MCU PWB J402 for open circuit, short circuit, and poor contact. 3. If no problem is found, replace the following parts in sequence: • HVPS (PL 18.3) • ESS/MCU PWB (PL 18.3)

Error code:	005-122
Description:	DADF Simplex/Side 1 Pre Registration Sensor On Jam RAP • After Pre-Feed started for the first sheet (DADF Feed Motor On (CW)) in Simplex and Duplex, the DADF Pre Registration Sensor did not turn ON within the specified time. • After Pre-Feed started for the second sheet onwards (DADF Feed Motor On (CW)) in Duplex, the DADF Pre Registration Sensor did not turn ON within the specified time.
Remedy:	Open the Top Cover and remove the Invert Chute. Enter the Diag Mode, turn ON Component Control [005-206]. Block the DADF Pre Registration Sensor using a sheet of paper, etc. Does the display change to High? Y↓N→Disconnect the DADF Pre Registration Sensor connector P/J774. Does the display change to High? Y↓N→Check the wire between the DADF Pre Registration Sensor P/J774-2 and the DADF PWB P/J757-11 for a short circuit. If no problems are found, replace the DADF PWB (PL 51.2). Is the voltage between P/J774-1 (+) and P/J774-3 (-) +5VDC? Y↓N→Check the wires between the DADF PWB P/J757-12 and the DADF Pre Registration Sensor P/J774-1, as well as between the DADF PWB P/J757-10 and the DADF Pre Registration Sensor P/J774-3 for open circuits and poor contacts. Replace the DADF Pre Registration Sensor (PL 51.17). Press the Stop button. Turn ON Component Control [005-010] (DADF Feed Motor). Does the DADF Feed Motor operate? Y↓N→Is the voltage between the DADF Feed Motor P/J776-5/2 (+) and the GND (-) +24VDC? Y↓N→Is the voltage between the DADF PWB P/J754-B1/B2 (+) and the GND (-) +24VDC? Y↓N→Is the voltage between the DADF PWB P/J753-2 (+) and the GND (-) +24VDC? Y↓N→Refer to BSD 5.1 - Document Setting and check the +24VDC circuit to the DADF PWB P/J753-2. Replace the DADF PWB (PL 51.2). Check the wires between the DADF PWB P/J754-B1 and the DADF Feed Motor P/ J776-5, as well as between the DADF PWB P/J754-B2 and the DADF Feed Motor P/J776-2 for an open circuit and poor contact. Turn OFF the power and disconnect P/J754 from the DADF PWB. Measure the wire wound resistance of the Motor. • Between P/J754 pin-B1 and P/J754 pin-B5/B6 • Between P/J754 pin-B2 and P/J754 pin-B3/B4 Is the resistance approximately. 1Ohm for each? Y↓N→Replace the DADF Feed Motor (PL 51.5). Replace the DADF PWB (PL 51.2). Check the following: • The document path for foreign substances. • Overly strong Retard pressure. • The DADF Pre Registration Sensor Actuator for disengagement, drag and damage.

Error code:	005-123
Description:	DADF Simplex/Side 1 Registration Sensor On Jam RAP After Pre Registration operation started (DADF Feed Motor On (CCW)), the DADF Registration Sensor did not turn ON within the specified time.
Remedy:	Open the Top Cover and remove the Invert Chute. Enter the Diag Mode, turn ON Component Control [005-110]. Turn ON the DADF Registration Sensor using a sheet of paper, etc. Does the display change to "H" (opposite to the voltage level)? Y↓N→Remove the DADF Rear Cover. Is the voltage between the DADF PWB P/J757-14 (+) and the GND (-) +5VDC? Y↓N→Replace the DADF PWB (PL 51.2). The voltage between the DADF Registration Sensor P/J775-2 (+) and the GND (-) +5VDC? Y↓N→Check the connection between the DADF Registration Sensor P/J775-2 and the DADF PWB P/J757-14 for an open circuit and poor contact. The voltage between the DADF Registration Sensor P/J775-1 (+) and P/J775-3 (-) +5VDC? Y↓N→Check the wires between the DADF PWB P/J757-15 and the DADF Registration Sensor P/J775-1, as well as between the DADF PWB P/J757-13 and the DADF Registration Sensor P/J775-3 for open circuits and poor contacts. Replace the DADF Registration Sensor (PL 51.17). Press the Stop button. Turn ON Component Control [005-008] (DADF Feed Motor). Does the DADF Feed Motor operate? Y↓N→The voltage between the DADF Feed Motor P/J776-5/2 (+) and the GND (-) +24VDC? Y↓N→The voltage between the DADF PWB P/J754-B1/B2 (+) and the GND (-) +24VDC? Y↓N→The voltage between the DADF PWB P/J753-2 (+) and the GND (-) +24VDC? Y↓N→Refer to BSD 5.1 - Document Setting and check the +24VDC circuit to the DADF PWB P/J753-2. Replace the DADF PWB (PL 51.2). Check the wires between the DADF PWB P/J754-B1 and the DADF Feed Motor P/ J776-5, as well as between the DADF PWB P/J754-B2 and the DADF Feed Motor P/J776-2 for an open circuit and poor contact. Turn OFF the power and disconnect P/J754 from the DADF PWB. Measure the wire wound resistance of the Motor. • Between P/J754 pin-B1 and P/J754 pin-B5/B6 • Between P/J754 pin-B2 and P/J754 pin-B3/B4 The resistance approximately 1Ohm for each? Y↓N→Replace the DADF Feed Motor (PL 51.5). Replace the DADF PWB (PL 51.2). Check the following: • The document path for foreign substances. • The Transportation Roll for contamination, wear or revolution failure.

Error code:	005-125, 005-145
Description:	DADF Regi Sensor Off Jam/ DADF Regi Sensor Off Jam on Inverting [DADF Regi Sensor Off Jam] After the DADF Pre Regi Sensor turned OFF at Scan operation, the DADF Regi Sensor did not turn OFF within the specified time. [DADF Regi Sensor Off Jam on Inverting] After the DADF Pre Regi Sensor turned OFF at Invert operation, the DADF Regi Sensor did not turn OFF within the specified time.
Remedy:	Check the following: • Transportation failure due to foreign substance on the document path. • The surface of the Regi Roll, Out Roll, and Exit Roll for foreign substances. • The surface of the Regi Roll, Out Roll, and Exit Roll for wear. • The DADF Regi Sensor (Input Check [005-110]) for operation failure. (PL 56.14) • The DADF Pre Regi Sensor (Input Check [005-206]) for operation failure. (PL 56.14) • The DADF Feed Motor (Output Check [005-008]) for operation failure. (PL 56.6) • The Drive Gear for wear and damage. If no problem is found, replace the DADF PWB. (PL 56.2)
